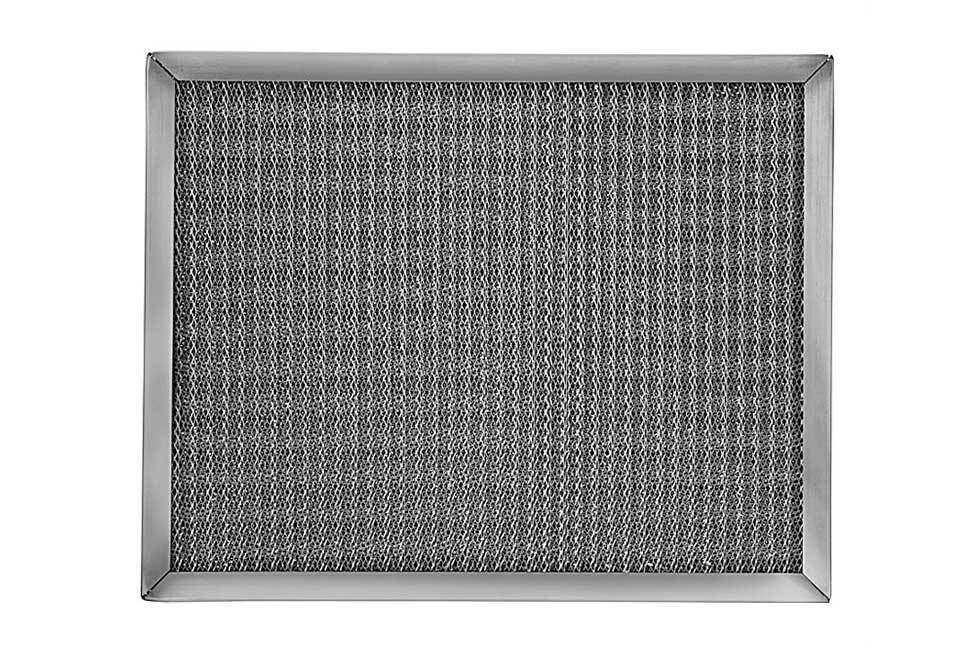

304 Stainless Steel Filter
CONSTRUCTION: The 304 Stainless Steel Filter is the heaviest mesh filter available. Made from 304 stainless steel, this filter can hold up to the toughest conditions, in both air and grease applications. The frame is made of heavy 304 stainless steel. It can withstand harsh chemicals when it comes to cleaning. The 304 Stainless Steel Filter is designed for applications that require the utmost in filterability. Stainless steel will withstand extreme heat conditions. The maximum temperature range on the 304 Stainless Steel Filter is 900 degrees F. The “Cadillac” of filters. Available in both stock and special sizes.
PERFORMANCE: Filters shall retain 240 grams of grease or 300 grams of dust per 400 sq. inches of filter area. Resistance when clean is .075 w.g. at 350 F.P.M. air velocity. Maximum temperature range on this Stainless Steel filter is 900 degrees F.
MATERIAL: Filtering element shall be processed from Stainless Steel sheet expanded to .032 strand. Frame shall be made from type 304 Stainless Steel, not less than .024 thickness, joined with stainless steel rivets.
