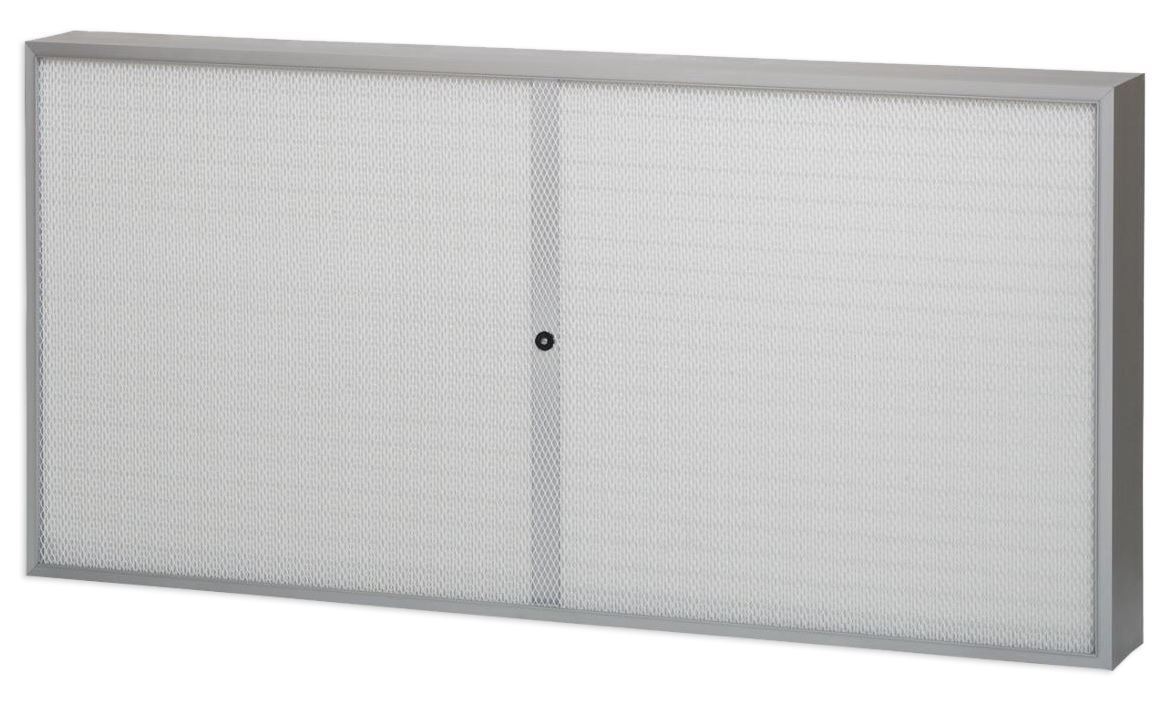

Flowstar Ducted Terminal Module

$0.00

The Flowstar Ducted Terminal Module uses a mini-pleated wet laid microglass media with efficiency of 99.99% (HEPA) minimum removal on 0.3µm particle size; efficiency of 99.9995% (ULPA) minimum removal on 0.12µm particle size. The ducted terminal modules are designed for optimized performance, easy installation and longer service life.

All filters are subjected to an overall efficiency test and a leak scan tested in accordance with IEST-RP-CC-001 Latest Revision.

  • 2.0” (51mm); 2.5” (63mm) and 4.0” (102mm) mini-pleat media packs
  • Overall frame height of 5.25”, 5.88” and 7.25” respectively
  • Adjustable damper creates balanced and uniform air flow extends service life
  • Anodized extruded aluminum with galvanized hood
  • White painted screen protects the media pack
  • Low pressure drop design reduces energy consumption
